Product Information

Pioneer Champion Series subwoofers are strong, tough and can handle high power at high volume levels without compromising sound quality.
With Dual Spiders and Motor Assembly as the driving force, they can produce deep dynamic sounds that are true to the Champion Series name. These models also have a unique Pioneer Dust Protection design, to prevent dust from interfering and compromising the subwoofer performance and reliability. Pioneer Champion Series subwoofers ensure accurate, deep punchy and rhythmical bass by using advanced technologies, such as a Pioneer patented IMPP composite cone material, a rigid 3D-shaped cone design and large double stacked magnets. Upgrade your sound with the Pioneer TS-300S4. This single voice coil 30cm subwoofer delivers 1400 W Maximum power and 400 W Nominal power. It can be used both in an enclosure or free air use.

Key Features

• Size 30 cm
• Maximum power 1400 W
• Nominal input power 400 W
• Sensitivity  93 dB
• Impedance  4 Ω
• Mounting Depth  147 mm
• Cut-out Hole 281 mm
• Woofer material IMPP
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Polyimide
• Lowest resonance frequency 27 Hz
• Magnet  Ferrite (double)

What’s in the box?

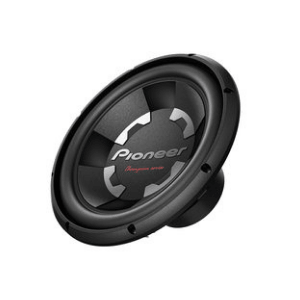

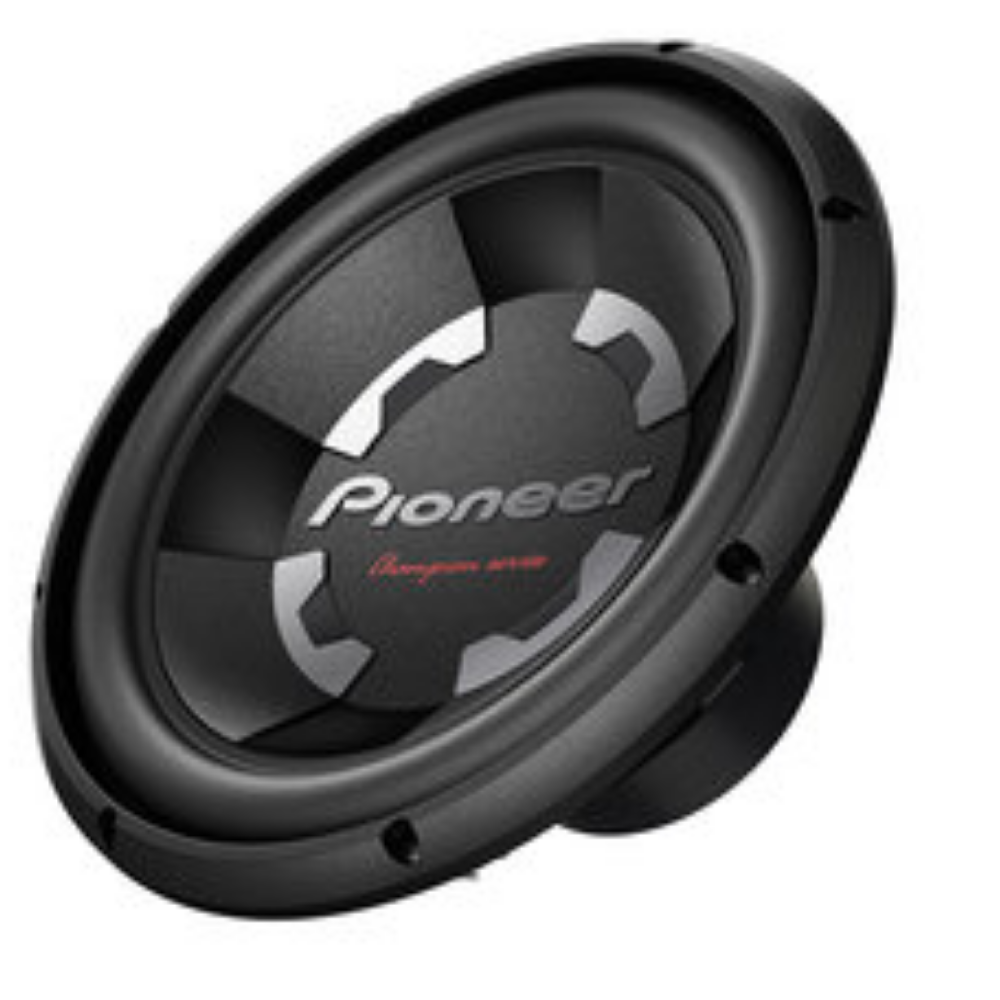

• PIONEER TS-300S4 Bass Speaker
• Fittings per manufacturer
• User Manual
